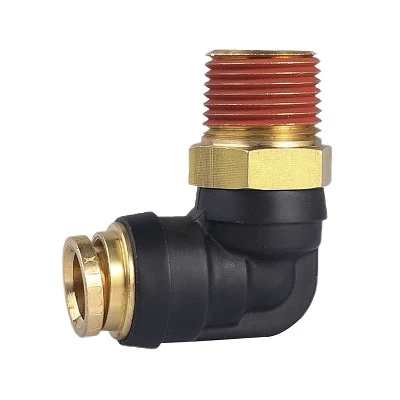

Composite txiv neej lauj tshib 90 degree swivel

Tus txiv neej lub lauj tshib 90 degree swivel yog ib qho kev sib txuas ntawm PTC thiab PTCr composite fittings thiab feem ntau yog siv nyob rau hauv cov ces kaum ntawm cov kab sib txuas ntawm cov yeeb nkab sib txuas. Nws yog tsim los ua 90 degree Luj Tshib los pab txhawb kev hloov pauv ntawm cov yeeb nkab kev coj thiab tau siv dav hauv pneumatic thiab cov tshuab hydraulic. Qhov txuas txuas ntxiv kuj muaj tus tsim qauv rotatable, uas tso cai rau kev txhim kho yooj yim dua, kev sib txuas tau yooj yim, thiab kev sib cav tsawg dua thaum lub sij hawm installation.



Ua los ntawm tooj dag ua ke nrog PTC (polymeric thermoplastic Composite Thom) thiab Corrosion tsis kam thiab sib khi rau ntau cov ntawv thov kev lag luam.



Lub tswv yim tsim los ntawm txiv neej lauj tshib 90 degree-deverages yooj yim sib sau, nqa cov kev hloov pauv dawb rau kev teeb tsa thiab kev saib xyuas ntawm cov tshuab muaj kev lag luam. Lub tshuab ceev ceev admts anergonically tsim lub tshuab raj, thiab tag nrho cov txheej txheem sab hauv cov cuab yeej siv hluav taws xob, thiab tag nrho cov txheej txheem sab hauv yam tsis muaj cov cuab yeej xws li kev siv ntsia hlau, thiab lwm yam. Qhov chaw ntsaws no thiab-ua si zoo yooj yim tshaj tawm cov txheej txheem kev siv ua haujlwm, tshwj xeeb tshaj yog nyob rau hauv cov xwm txheej ua haujlwm, tshwj xeeb dhau kev ua haujlwm zoo thiab txhim kho kev ua haujlwm.



Nyob rau tib lub sijhawm, lub rotatable feature ntawm kev sib txuas yog qhov tseeb los ntawm cov kabmob precision lossis kho lub kaum hli ntuj, thiab kho lub kaum sab xis thiab kev taw qhia ntawm cov raj xa dej yooj yim. Qhov kev hloov pauv no yog ib qho tseem ceeb tshaj plaws hauv cov piping txheej, raws li nws zam kev ntxhov siab los ntawm pipular disgiation thiab ua kom muaj kev sib txawv ua kom dej. Thaum lub sij hawm saib xyuas, cov neeg ua haujlwm tsis tas yuav rhuav tshem cov raj xa mus rau sab hauv ntawm cov khoom siv tau txuas ntxiv thiab rhuav tshem cov tso xov zoo sib txuas, uas yog cov kauj ruam cumbersome.



Rau cov kab ntau lawm, kuaj cov dej hauv lub sijhawm, thiab lwm lub sijhawm tsim kho ntawm cov txiv neej lub laujkev 90 degree-downings ua kom tsawg dua cov cuab yeej downtime. Piv txwv li, nyob rau hauv semiconductor raug, cov kav dej yuav tsum tau hloov kho nyob rau hauv kev tsim khoom thiab hloov chaw ua haujlwm nrawm tuaj yeem ua tiav tsis pub dhau cov piping tsim kho; Hauv cov khoom siv petrochemical, nws yooj yim lub raum haum rau cov neeg ua haujlwm ntawm kev ua tsis tiav ntawm kev ua tsis tiav ntawm cov txheej txheem. Ib qho ntxiv, cov ob chav sib khi tsim hauv kev sib txuas (xws li kev sib xyaw ua ke ntawm cov txheej txheem sib hloov, thiab tseem muaj kev lees paub ruaj khov, nws tseem tuav tau ruaj khov rau txoj haujlwm siab ntawm kev siv tshuab.



Ntu #	Raj loj * Txiv neej NTF	B hex	L	M	Chaw nres tsheb	Aunann	Fairview
3040-4C	1/4*1/8	9/16	0.74	1.00	Vs369pr -4-2	177.12C694A	CPC1469Sw -4 a
3040-4D	1/4*1/4	9/16	0.74	1.14	Vs369pr -4-4	177.12C694B	CPC1469Sw -4 b
3040-4E	1/4*3/8	11/16	0.74	1.14	Vs369pr -4-6	177.12C694C	CPC1469Sw -4 c
3040-4F	1/4*1/2	7/8	0.74	1.35	Vs369pr -4-8
3040-6C	3/8*1/8	3/4	1.01	1.24	Vs369pr -6-2	177.12C696A	CPC1469Sw -6 a
3040-6D	3/8*1/4	3/4	1.01	1.45	Vs369pr -6-4	177.12C696B	CPC1469Sw -6 b
3040-6E	3/8*3/8	3/4	1.01	1.28	Vs369pr -6-6	177.12C696C	CPC1469Sw -6 c
3040-6F	3/8*1/2	7/8	1.01	1.49	Vs369pr -6-8	177.12C696D	CPC1469Sw -6 d
3040-8D	1/2*1/4	15/16	1.13	1.42	Vs369pr -8-4	177.12C698B	CPC1469Sw -8 b
3040-8E	1/2*3/8	15/16	1.13	1.42	Vs369pr -8-6	177.12C698C	CPC1469Sw -8 c
3040-8F	1/2*1/2	15/16	1.13	1.61	Vs369pr -8-8	177.12C698D	CPC1469Sw -8 d
3040-10E	5/8*3/8	1-1/16	1.36	1.61	Vs369pr -10-6	177.12C6910C	CPC1469Sw -10 c
3040-10F	5/8*1/2	1-1/16	1.36	1.80	Vs369pr -10-8	177.12C6910D	CPC1469Sw -10 d
3040-12F	3/4*1/2	1-3/16	1.47	1.91	Vs369pr -12-8	177.12C6912D
3040-12G	3/4*3/4	1-3/16	1.47	1.87	Vs369pr -12-12	177.12C6912E
